Your partner for power resistors, potentiometers, and precision engineering products
Fixed resistor with small end plates FSK
Home/Products/Fixed resistor with small end plates FSK

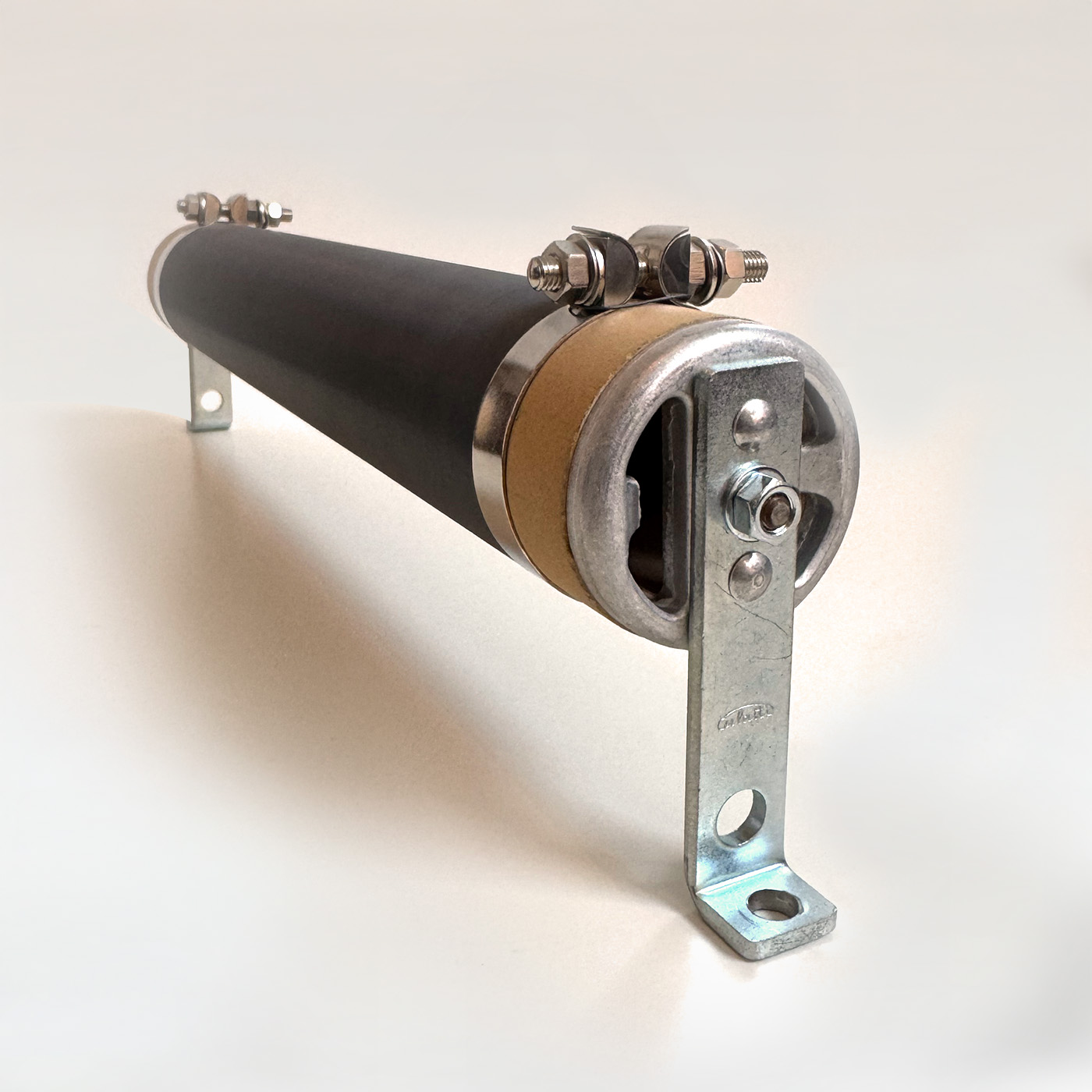

Fixed resistor with small end plates FSK
CHF 0.00 excl. VAT
High-strength fixed resistors with narrow head plates, suitable for upside-down cabinet installation for small and low-voltage circuits. They can be used as series resistors to regulate current, as fixed resistors or as voltage dividers.
Dimensions: FSK bracket drawing
Overview: Range of resistors
Our resistors are not mass-produced – each piece is manufactured individually for the customer. The solid construction using high-quality European materials guarantees durability and maximum reliability. Thanks to the long warranty period of 5 years and excellent repairability, the product remains operational for many years.
We offer maximum flexibility: on request, we can integrate additional functions such as an extra tap. All raw materials come from Europe: wire from France and Germany, tubing from Austria, and other components from Switzerland. The entire production process takes place in Switzerland.
Please contact us if you have any questions.
Additional information
Widerstandsdraht / Resistance wire
CuNi44 (Wst. Nr. 2.0842)
Körper / Body
C 520
Eckklemmen / Corner clamps
CuZn15 (Wst. Nr. 2.0240)
Standardtoleranz / Standard tolerance
+/- 10%
Temperaturkoeffizient / Temperature coefficient
+ 40 – 80 ppn
Anstieg der Temperatur / Temperature increase
350°C bei 100% ED
Testspannung / Test voltage
2500 V, 50 Hz, 1 Min
Touch-Schutz / Touch protection
IP 0
Garantie / Warranty
5 Jahre ab Verkaufsdatum / 5 years from date of sale
